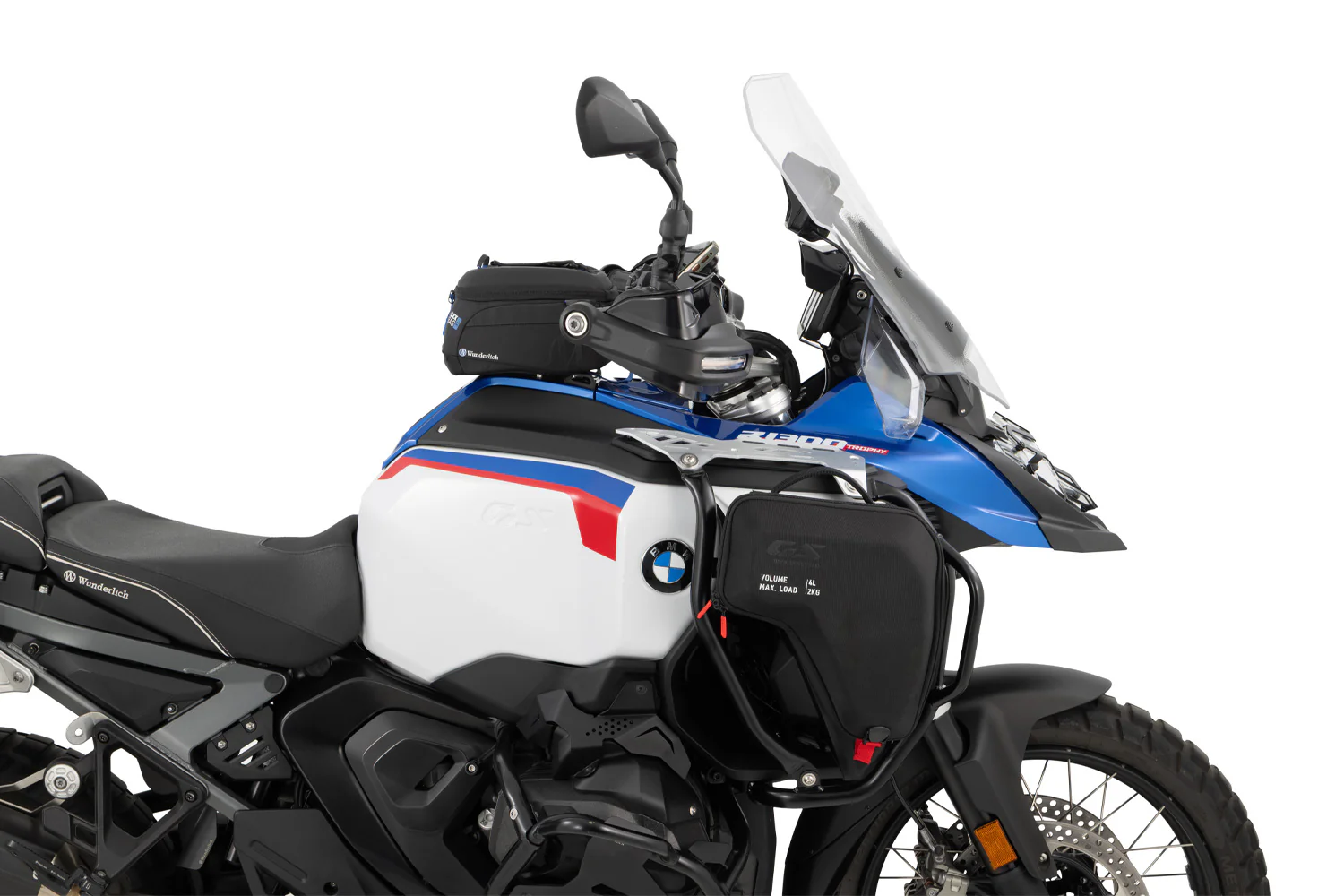

Wunderlich Tank Protection Bar Ultimate Pro | Black-Silver | BMW R 1300 GS Adventure

There’s no such thing as too much protection! The ULTIMATE Pro tank protection bar combines the benefits of the Ultimate tank protection bar with those of the ULTIMATE extension bar With preventive rollover protection The Wunderlich ULTIMATE tank protection bar – perfect, maximum protection for the tank and tank side panels of the BMW R 1300 GS Adventure Function and product features

• Wunderlich ULTIMATE tank protection bars are uncompromisingly designed for their protective effect during adventure riding
• They provide maximum protection for the exposed water coolers, the tank side panels, the front section with auxiliary lights, and to a certain extent for the tank side bags
• The two distinctive, laterally protruding tube segments are designed to prevent rollovers
• The cleverly integrated RackBase is a visual highlight and simultaneously serves as the upper mount for the front tank bar and the rear reinforcement strut – also functions as a tray or a compact rack with lashing openings
• The design ensures that external forces and moments are evenly distributed to suitable mounting points on both sides, reducing force and torque peaks
• An additional bracket is integrated into the tank side panel
• Thanks to the rigid tubular structure and selected materials, the ULTIMATE tank bar offers maximum protection
• The comprehensive protection concept enhances passive safety

Compatible with:

• Original engine protection bars
• Wunderlich engine protection bars ULTIMATE and ULTIMATE PRO
• Original cylinder head cover protection

• Perfect, integrated model-specific design – the bar path follows the contour of the front section precisely
• Perfect fit
• Easy Plug & Play installation: simple mounting using existing attachment points, with detailed installation instructions included

Compatibility note for engine protection bars Compatible with the original BMW engine protection bar

• Compatible with our engine protection bars using connector kit #13212-000 (please order separately)
• ULTIMATE PRO (#13200-00x)
• ULTIMATE (#13201-00x)

The Wunderlich ULTIMATE extension bars complement the ULTIMATE tank bar and provide cleanly integrated extra protection for the sides of the BMW R 1300 GS Adventure Function and product features

• These ULTIMATE extension bars complement the ULTIMATE tank bar and provide additional protection for the sides of the Adventure
• They serve as a connecting element between the RackBase and the lower tube bracket – adding extra rigidity to the tube structure
• Forces and moments are distributed across two additional mounting points on each side
• The shape of the extension bars also helps absorb peak loads elastically
• This additional protection improves passive safety and reduces the risk of leg injury in the event of a fall
• Perfect fit
• Integrated solution from a single mold
• Quick and easy installation

Technical data Material Protection bar:

Precision steel tubing with high tensile strength and elongation at break, carefully handcrafted, bent precisely on CNC tube bending machines, and cleanly welded with consistent seam patterns. Carefully finished and black powder-coated

RackBase:

Made of aluminum, carefully finished

Aluminum-colored – clear anodized

Side bracket:

Made of aluminum, carefully finished

Aluminum-colored – clear anodized

Dimensions

Tubing diameter: 25 mm

Color

Protection bar structure black powder-coated, RackBase and side brackets aluminum-colored anodized – bicolor

Your Wunderlich advantages

• Wunderlich premium product
• Small batches. Handmade.
• Wunderlich design. Functional and integrated.
• Made in Germany
• Wunderlich 60/5
• 60-day return policy – risk-free trial!
• 5-year warranty

ULTIMATE tank bars are uncompromisingly designed for protective performance during adventure riding

World-traveling adventure riders know this: there are days when your bike falls more than once due to conditions that would be unthinkable in well-developed, civilized Europe. Or sometimes, fatigue, heat, or cold simply sap your strength and stamina, and you can’t hold the bike upright. Out in the wild, it’s essential to have reliable equipment that can handle the stress and won’t fail – it can be vital for staying mobile, constantly moving, and self-reliant to minimize personal risk.

Definitely made for adventure riding. Made in Germany. ULTIMATE – when it matters most.

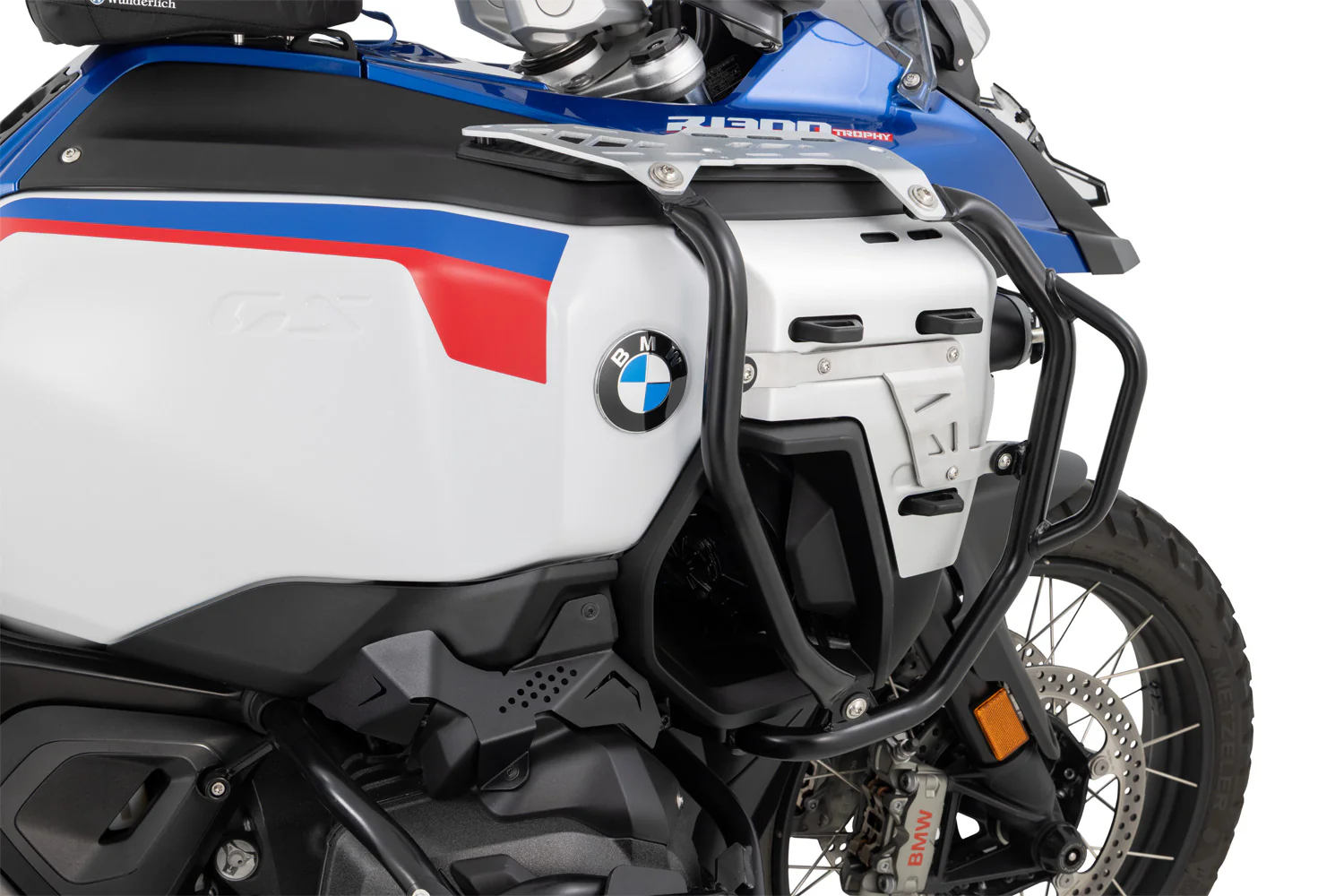

This Wunderlich ULTIMATE tank protection bar is purpose-built for adventure riding and reliably protects not only the tank but also the fairing, front section, and highly vulnerable water cooling units. In combination with the rollover protection, it forms a thoughtful all-around protection concept for passive safety: in case of a fall or tip-over, the acting forces are optimally distributed across the robust mounting points via the protection bar structure, minimizing peaks in force and torque. Visually, the protection bar integrates into the design of the Adventure and emphasizes its distinctive appearance. The tank bar is made from a composite of 25 mm precision steel tubing, formed on CNC bending machines and cleanly welded.

With our ULTIMATE protection bars, the focus is on maximum protection and product design. The tank bar protects and enhances your BMW in a high-quality way.

The ULTIMATE extension bars fit perfectly and, in combination with the tank bar, add passive safety

Our extension bars made from 25 mm precision steel tubing support, reinforce, and optimize the protection of the ULTIMATE tank bar.

ULTIMATE Pro = ULTIMATE + ULTIMATE
